Tenant Service In Action – Form data to Salesforce

DEF Tenant Process

If you have not reviewed my other blogs on re-inventing the Salesforce CRM connector, I encourage you to give them a read before you jump deep in to this one. It will give an idea as to why we landed at this very solution to achieve our goals and satisfy the requirements. Below are the links to the blog posts for reference –

Sitecore Connect to Salesforce CRM – A New Take!
Ship Sitecore Contacts as Custom Salesforce Objects

Now, let us continue where we left off. I really wanted Tenant Service to work since it is a win-win for us. Firstly, we do not have to store all form submission information on Sitecore Contact card. We should strive to keep only useful and personalizable information on xConnect Contact card to keep xDB clean. Secondly, it would be a scalable solution. Let’s say if a new form is added to the website and the information entered need to make it to Salesforce on submission, it does not dev involvement. All it would need is a new Tenant pipeline and bunch of new value accessors for form and Salesforce. Isn’t this much more elegant than extending a custom update contact action every single time a new form is added? An absolute Yes!

Let us see how we made it happen. Do note that the set up is tedious, but, also note that this is one time thing. Once the set up is complete, all you would need is do maintenance by dropping/deploying latest binaries if you have some custom code in action. Alright here we go –

Installation and Setup

There is some good starter documentation out there that will get you started with Tenant Service, DEF and form submit action to fire the tenant service pipeline. Give that a read here.

Our case is more complicated than that, we need to fire a pipeline that would take that form context and submit that information to Salesforce instead, so, it would need bunch of other steps. Below is what was needed on our Sitecore Managed Cloud environment to give you an idea.

  • A new web app created on Azure environment – Configuration depends on your needs and traffic. On our end, we decided it was a smart idea to match configuration of new web app to other web app’s on the environment such as CM/CD for instance. Once web app is ready, manually deploy the files. You can follow Manual deployment instructions noted on ‘Installation guide for Data Exchange Tenant Web Service’ document here. Another important thing to note here is to add ‘WEBSITE_LOAD_USER_PROFILE’ in Application Settings on web app created and set the value to ‘1’. If you do not do this you will get errors on Tenant Service that suggest data protection was unsuccessful.
  • Also drop Tenant Service plugin for CRM Connector on Tenant service root location. Install package for ‘Salesforce CRM Plugin for Tenant Service’ from here and extract files and drop them in your tenant service root folder. Note, it is also required to drop Salesforce.Common and Salesforce.Force dll’s on to your Tenant Service root folder. With out this, you will see some errors when Tenant pipeline runs.
  • Configure your connection string properly on Tenant Service web application to ensure it can talk to CM server properly.
  • Ensure DEF and Salesforce CRM Connector both are installed and configured on CM server and CD server of the environment. The instructions should already be documented in corresponding downloads section for Data Exchange Framework and CRM Connector. Also, enable CM to talk to Tenant Service web application created in above steps. It is done via changing Sitecore.Services.Client.config setting ‘Sitecore.Services.SecurityPolicy’ to ‘Sitecore.Services.Infrastructure.Web.Http.Security.ServicesOnPolicy,Sitecore.Services.Infrastructure’.
  • Finally for tenant service communication and SF activation ensure you have connection strings added to both CM and CD servers. Note down the connection string name for tenant service. Publish all core Sitecore nodes and restart all web app’s that have been touched on steps above.
  • Ensure Tenant Service and CM can communicate well by going to {TenantservicewebappURL}/api/Tenant – If all is well, you should see all tenant service end points under main DEF tenant and if they are enabled
  • Lastly ensure your form submit actions fires appropriate Tenant Service pipeline which internally has a step to submit the same to Salesforce. Use your connection string name copied on setting in the action. Your pipeline would look something similar to the screenshot below. Most of the pipeline steps are re-used/borrowed from out of the box CRM connector pipeline. All I had to do was to ensure queue settings and objects loaded are correct. Plus create all value accessors and mapping sets needed to ensure I map form data to correct object definition on Salesforce. All of this steps are already noted in my previous blog here
Pipeline that is triggered on form submission
Form submit action to trigger Tenant Service end point

Note: As of this writing and the version of Tenant Service used, there was a bug that was preventing me to select certain field types on Form Value Accessors. I had to edit this item on Sitecore to include the field types that were missing – /sitecore/system/Settings/Validation Rules/Field Rules/Data Exchange Framework/Forms/Required Valid Form Field

If all goes well, you should now see form submission data on Salesforce as intended object. You might not get everything right on first go, so, to debug what is cooking you can go to Tenant Service root folder and check logs up there. You may have to check CD logs as well sometimes if Tenant Service logs are not showing anything useful.

All in all, Tenant Service is a great way to push information to third parties and scalability with zero code needed to do everything I just talked about is just super amazing. It will leave your Marketing team happy for sure. Only issue I found in this is performance impact due to all the processing happening on Form Submission, so, if you or your team is concerned about adding additional overhead/time to process form submissions, then, I recommend looking in to storing the information else where or on Contact. Form Submit Action responsible for triggering Tenant Service currently waits for the processing to complete before continuing with next form submit action step and redirecting the user to thank you page.

There are ways to convert some of this pipeline steps to be asynchronous by making custom processors using Tasks per Sitecore support, but, I have not tried it just yet. May be a post for later when I can get to that.

Posted on

Ship Sitecore Contacts as Custom Salesforce Objects

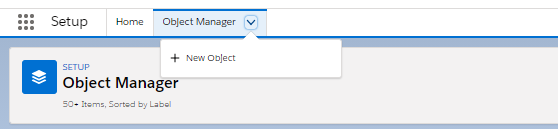

NewCustomObject

Hello! If you have not read my first post in regards to challenging new proof of concept we did in order to confirm if we can use Sitecore CRM connector given our requirements, please give that a read here. In this blog post, I will cover first two goals I had on mind to test the waters and see if connector can be leveraged or if we need to switch our game plan. Short answer is, Yes, I was successful and though we had few gaps that needs addressing if we roll forward, it felt doable given the initial findings.

Let us look more deeper as to how I configured Sitecore CRM connector to be able to ship Contacts as custom Salesforce objects. In our case, they were custom Salesforce objects, but, the same steps could be applied to map Sitecore Contact information to any defined object on Salesforce. Below are the steps in order you would need to do in order to ship Sitecore Contacts to Salesforce as specific objects.

  • First things first, define value accessors for your Salesforce object and ensure to add proper API field name or any other settings that are needed for every field in question. See a quick screenshot that should help understand this step better
Screenshot depicting value accessors for custom object in Salesforce
  • Ensure you have value accessors on Sitecore Contact as well if say some custom facet model and properties were defined on your Sitecore Contact. This has been done many times in the past and I have blog posts covering this topic if you like to give that a read. Check out these posts.
  • Now that you know what data to read and what exactly it maps to both objects in question. Let us define the pipeline steps. It is always best to duplicate default one that comes OOTB when you install the CRM connector. It would be this one in the path below, duplicate and call it your own.
    /sitecore/system/Data Exchange/Landrys Salesforce Tenant/Pipelines/xConnect Contacts and Interactions to Salesforce Sync
  • Alright, now below specific steps would need some edits to accomplish what we are after.
  • Go to your duplicated pipeline step called ‘Fake Resolve Salesforce Contact’ which should be inside pipeline ‘Process Single Contact from xConnect pipeline. Ensure to give proper name for object and pick your shiny new value accessors defined for Salesforce object. It would look something like below.
depicts pipeline change to read new object fields and object name should be API name for the object of concern in Salesforce.
  • Create new value mapping set that connects which field from Sitecore Contact should map to which field on Salesforce custom object. Once you have that sorted ensure the step called ‘Apply Mapping from Contact Model to Salesforce Feedback” inside of ‘Process Single Contact from xConnect Pipleline’ has the correct mapping set picked.
  • Now, go to pipeline step ‘Add Salesforce Object to Queue Pipeline Step’ and ensure ObjectName is correctly noted on Queue Settings. You may decide to leave this as default, but, it is better to always have different queue names to resonate what truly is present on the queue. It should then look like below.
  • Last, but, important. If you do not do this, only batch size defined number of contacts will be shipped to Salesforce due to bug as of this writing on latest version of Connector. Note the case, it should be completely lower case on highlighted. Go to pipeline step ‘Submit Remaining Contacts In Salesforce Object Queue’ inside of pipeline ‘Read Contacts from xConnect Pipeline’ and ensure ‘Object Name’ field has right settings.
Depicts object name in lower case to avoid missing contacts on Salesforce

And that is pretty much it, if all goes well if you go to a tab that displays custom objects on Salesforce, you should now see created objects of type you wish for on Salesforce.

screenshot depicting custom objects created

Now, if you have custom facets and fields that would need mapping, it is super important to ensure to load corresponding facets on step ‘Read Contacts from xConnect’ step inside ‘Read Contacts from xConnect Pipeline’

Depicts custom facet that is picked while loading xConnect Contact

Also, it is important to have your custom collection model loaded on end points if you have one. I think I covered some of this in my previous blogs as well. So, you can refresh those up here if needed.

So far so good, I see what I need on Salesforce, but, the solution of stowing away all that information on Custom Facets on xDB contact record seems like overkill and messy. In our case, our goal was to send every single form submission of a Contact on to Salesforce. To do this in the path suggested above which is mapping Sitecore Contact to Salesforce object, we have to store literally every single form submission information on xDB Contact record though doable seemed pointless. We do not see value in what we are storing as we may only personalize on latest form submission and rest of the data is waste of memory and could quickly grow our xDB indexes.

I am all about efficient solution and this did not seem like one. Something caught my eye on Sitecore downloads link -> Tenant plugin for Sitecore CRM Connector.

What does Salesforce CRM plugin for Tenant Service do?

My mind started wondering, what if I can use the connector to push all the information user entered on forms using Connector, but, with out having to save all of it on Contact record. That would be amazing, right?

In my next blog post, I will talk about how far we got on using Tenant plugin and DEF framework submit action to actually do what we had on mind to align with win win solution.
